Sub-pipeline example: Pipeline with build secrets

Source code for this example.

In the Radix application repository create a folder tekton. This folder need to be in the configuration branch and in the same folder, where radixconfig.yaml file is located (by default it is a root of the repository).
The sub-pipeline in this example runs one task.
Create a file use-secrets-task.yaml for the task use-secrets. This task has one step "show-secrets", which runs in the container with Alpine Linux.
- The step runs a script with one commands, showing secrets, mapped to step's container environment variables and files.
- The task step has description of environment variable DB_SERVER_NAME in the field env, which will be created in the step's container. These environment variable gets value from the secret DB_SERVER, referencing to them via secretKeyRef with $(radix.build-secrets) and a secret name:
```
env:
  - name: DB_SERVER_NAME
    valueFrom:
      secretKeyRef:
        name: $(radix.build-secrets)
        key: DB_SERVER
```
- The task step also has description of mapping from the build secret and environment variables in the field envFrom, which will create in the step's container environment variables for each secret entry in the build secret. These environment variables can get optional prefix to their names, specified in the field prefix (e.g. BUILD_SECRET_ in this example, so for the secret DB_SERVER the environment variable will be BUILD_SECRET_DB_SERVER). Reference to the build secrets are defined with a field secretRef.name and with $(radix.build-secrets) as a secret name:
```
envFrom:
  - secretRef:
      name: $(radix.build-secrets)
    prefix: BUILD_SECRET_
```
- The task spec also contains a field volumes. In this example volumes are mapped to build secrets with particular secret entries, split to two volumes and separate items in volumes. Build secrets are referred as $(radix.build-secrets) in a field secret.secretName of each of volumes.
  - Volume volume-with-password maps the build secret DB_PASSWORD to a file password.txt
  - Volume volume-cert maps the build secrets CERT_PRIV_KEY and CERT_PUB_KEY to files priv/cert.key and priv/cert.pub correspondingly. Folder priv in the path will be a sub-folder withing the mountPath of volumeMounts in task's steps:
```
volumes:
  - name: volume-with-password  #a volume, which can be shared between task steps
    secret:
      secretName: $(radix.build-secrets)
      items:
        - key: DB_PASSWORD
          path: password.txt
  - name: volume-cert
    secret:
      secretName: $(radix.build-secrets)
      items:
        - key: CERT_PRIV_KEY
          path: priv/cert.key
        - key: CERT_PUB_KEY
          path: priv/cert.pub
```

File use-secrets-task.yaml

apiVersion: tekton.dev/v1
kind: Task
metadata:
  name: use-secrets
spec:
  steps:
    - name: show-secrets
      image: alpine
      env:
        - name: DB_SERVER_NAME
          valueFrom:
            secretKeyRef:
              name: $(radix.build-secrets)
              key: DB_SERVER
      envFrom:
        - secretRef:
            name: $(radix.build-secrets)
          prefix: BUILD_SECRET_
      script: |
        echo "--- Print environment variables, with names containing 'DB_'"
        printenv | grep "DB_"

        echo "--- Print folders: /var/*-volume"
          ls /var/*-volume

        echo "--- Print file: /var/pass-volume/password.txt"
          cat /var/pass-volume/password.txt

        echo "--- Print file: /var/cert-volume/priv/cert.key"
          cat /var/cert-volume/priv/cert.key|head -n 3

        echo "--- Print file: /var/cert-volume/priv/cert.pub"
          cat /var/cert-volume/priv/cert.pub|head -n 3
        :
      volumeMounts:
        - name: volume-with-password
          mountPath: /var/pass-volume      #mount this volume to a folder "/var/task-volume"
        - name: volume-cert
          mountPath: /var/cert-volume      #mount this volume to a folder "/var/cert-volume"
  volumes:
    - name: volume-with-password           #a volume, which can be shared between task steps
      secret:
        secretName: $(radix.build-secrets) #map Radix build secrets to a volume
        items:
          - key: DB_PASSWORD               #map this secret to a file "password.txt"
            path: password.txt
    - name: volume-cert                    #a volume, which can be shared between task steps
      secret:
        secretName: $(radix.build-secrets) #map Radix build secrets to a volume
        items:
          - key: CERT_PRIV_KEY             #map this secret to a file "priv/cert.key"
            path: priv/cert.key
          - key: CERT_PUB_KEY              #map this secret to a file "priv/cert.pub"
            path: priv/cert.pub

Create a file pipeline.yaml. Add a task in the tasks list: give it a name (it can be any name, unique within this sub-pipeline), in the property taskRef ("reference to a task") put the value from the property metadata.name of the task, created above:

apiVersion: tekton.dev/v1
kind: Pipeline
metadata:
  name: pipeline-example-with-secrets
spec:
  tasks:
    - name: use-secrets-for-db      #name of the task "use-secrets" in this pipeline
      taskRef:
        name: use-secrets    #task name

File structure can be like this:

/
├── tekton/
│   ├── pipeline.yaml
│   └── use-secrets-task.yaml
└── radixconfig.yaml

In the file radixconfig.yaml add a field build with sub-field secrets, as described in the radixconfig.yaml reference. Values of these secrets will be passed to the sub-pipeline task with build secret reference $(radix.build-secrets):

spec:
  build:
    secrets:
      - DB_SERVER
      - DB_PASSWORD
      - CERT_PRIV_KEY
      - CERT_PUB_KEY
      - DB_USER

This sub-pipeline runs the task use-secrets-for-db (which refers to the task use-secrets described in the file use-secrets-task.yaml), which has one step, as described above. This step runs a script, which prints environment variables and files with values of mapped build secrets. Note : (column) - this is no-op shell command, added for more stable behaviour of the script (as explained in Sub-pipeline hints).

#!/usr/bin/env sh
echo "--- Print environment variables, with names containing 'DB_'"
printenv | grep "DB_"

echo "--- Print folders: /var/*-volume"
ls /var/*-volume

echo "--- Print file: /var/pass-volume/password.txt"
cat /var/pass-volume/password.txt

echo "--- Print file: /var/cert-volume/priv/cert.key"
cat /var/cert-volume/priv/cert.key|head -n 3

echo "--- Print file: /var/cert-volume/priv/cert.pub"
cat /var/cert-volume/priv/cert.pub|head -n 3

First line of the script is shebang. It is recommended to use for consistent script behaviour. It can refer to a default shell sh or to a specific shell, existing in the step's image distribution, like bash for Ubuntu:
#!/usr/bin/env bash

Commit changes in the repository. Look at the details of a started Radix pipeline job (if the Radix app is connected to the GitHub WebHook, otherwise - start a job manually).
If build secrets were just added - the build will fail. Navigate to the "Configuration" page of the Radix application, fill in secrets in the section "Build secrets". In the page "Pipeline jobs" create a new job.

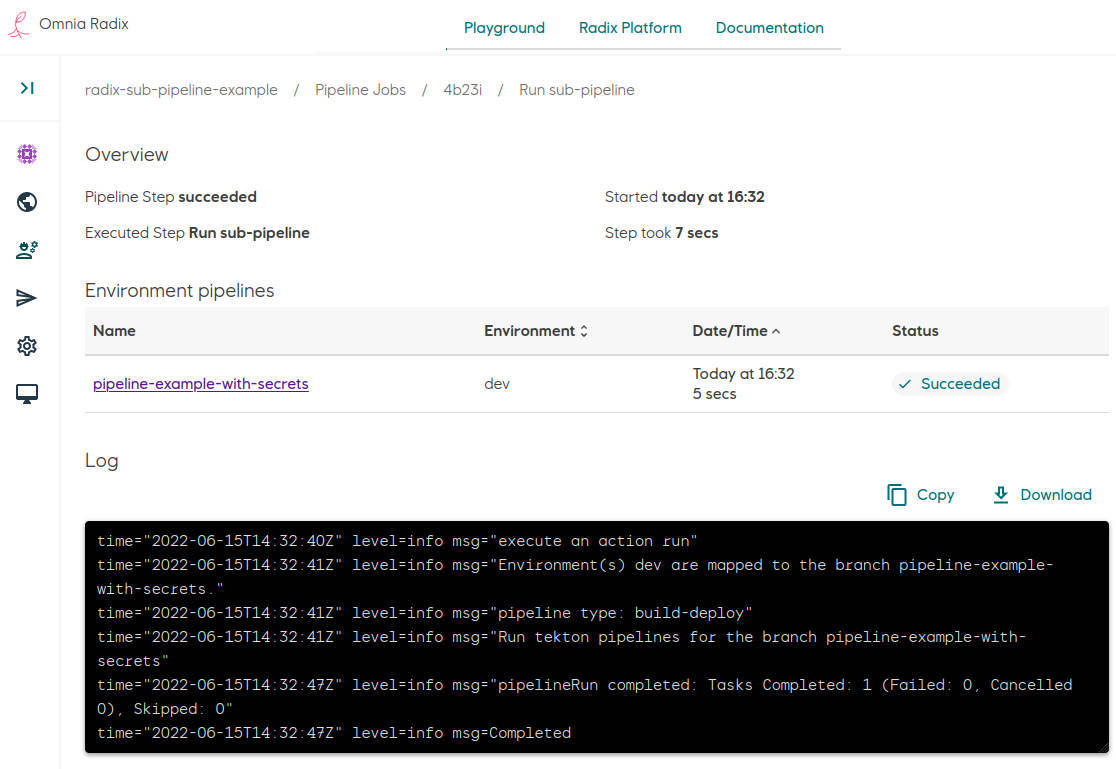

Navigate to the Radix pipeline step "Run pipeline", when it is running or completed: the pipelines overview page shows a table with a list of sub-pipelines - in this example it is one sub-pipeline "pipeline-example-with-secrets", running for an environment "dev", and the sub-pipeline status.
Navigate to the sub-pipeline (click on its name in the table row)

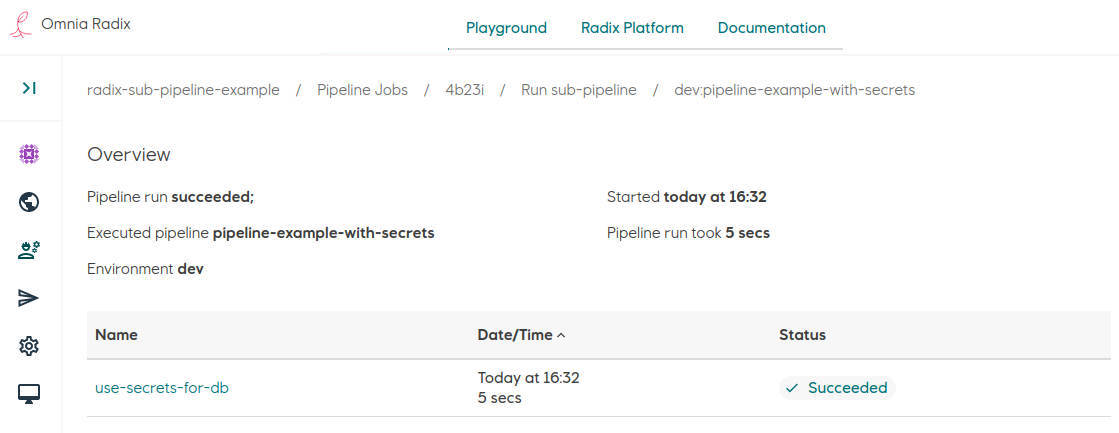

The sub-pipeline overview page shows a table with a list of this sub-pipeline's tasks - in this example it is one task "use-secrets-for-db", and the task status.
Navigate to the task (click on its name in the table row)

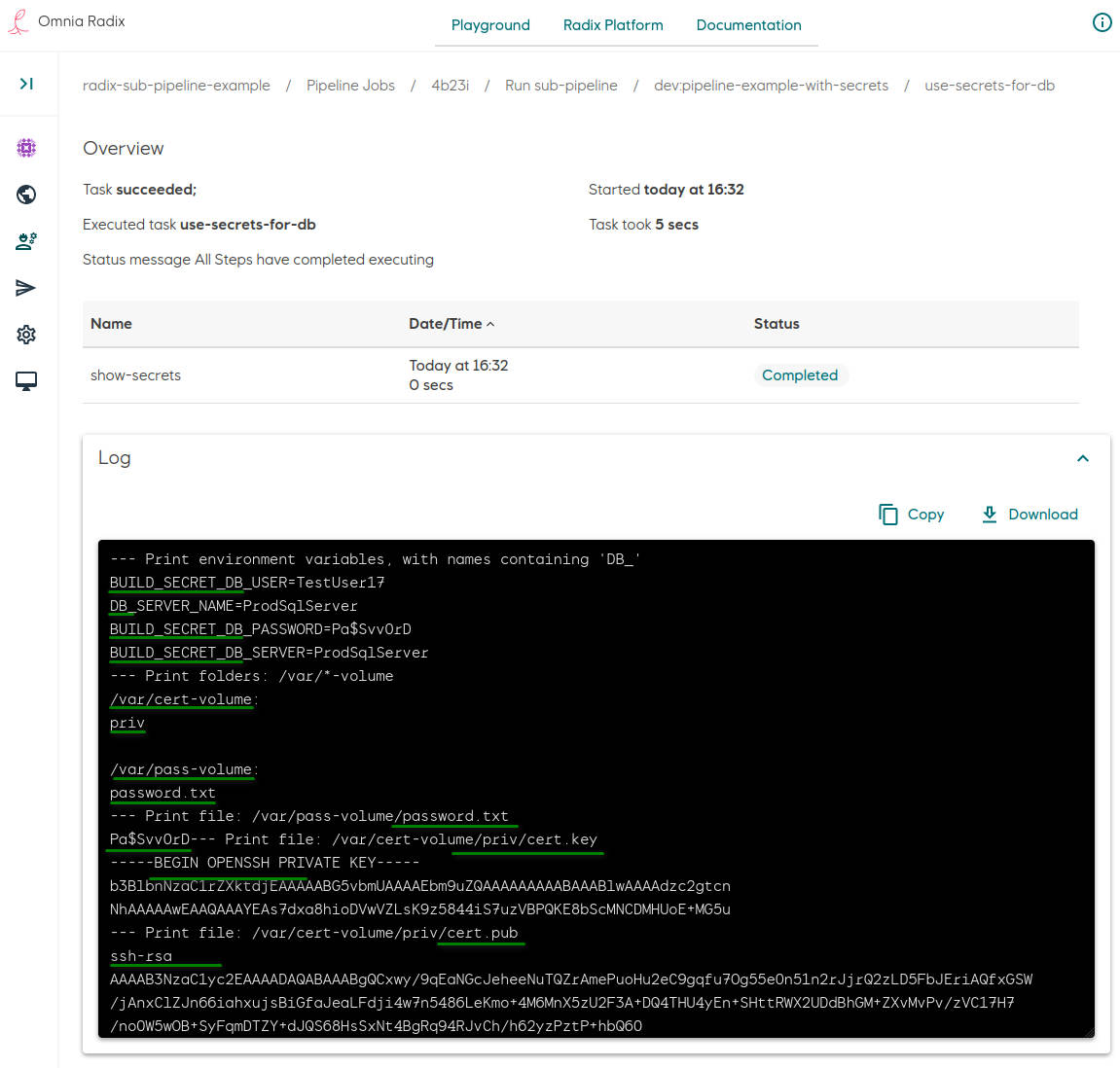

The sub-pipeline task overview page shows a table with a list of this task's steps - in this example it is one step "show-secrets", the step status and log.
The log shows environment variables and file contents of the step container (output depends on the entered build secret contents):

--- Print environment variables, with names containing 'DB_'
BUILD_SECRET_DB_USER=TestUser17
DB_SERVER_NAME=ProdSqlServer
BUILD_SECRET_DB_PASSWORD=Pa$Svv0rD
BUILD_SECRET_DB_SERVER=ProdSqlServer
--- Print folders: /var/*-volume
/var/cert-volume:
priv

/var/pass-volume:
password.txt
--- Print file: /var/pass-volume/password.txt
Pa$Svv0rD--- Print file: /var/cert-volume/priv/cert.key
-----BEGIN OPENSSH PRIVATE KEY-----
b3BlbnNzaC1rZXktdjEAAAAABG5vbmUAAAAEbm9uZQAAAAAAAAABAAABlwAAAAdzc2gtcn
NhAAAAAwEAAQAAAYEAs7dxa8hioDVwVZLsK9z5844iS7uzVBPQKE8bScMNCDMHUoE+MG5u
--- Print file: /var/cert-volume/priv/cert.pub
ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABgQCxwy/9qEaNGcJeheeNuTQZrAmePuoHu2eC9gqfu7Og55e0n51n2rJjrQ2zLD5FbJEriAQfxGSW/jAnxClZJn66iahxujsBiGfaJeaLFdji4w7n5486LeKmo+4M6MnX5zU2F3A+DQ4THU4yEn+SHttRWX2UDdBhGM+ZXvMvPv/zVC17H7/no0W5wOB+SyFqmDTZY+dJQS68HsSxNt4BgRq94RJvCh/h62yzPztP+hbQ60
